Ground Screw with Flange plate
Home > Products > flange > Ground Screw with Flange plate

Ground Screw with Flange plate


  • Ground Screw with Flange plate
  • Ground Screw with Flange plate
  • Ground Screw with Flange plate
  • Ground Screw with Flange plate
  • Ground Screw with Flange plate

Ground Screw with Flange plate

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 100 Piece/Pieces
    Delivery Time: 10 Days
    Packaging: steel pallet
    Productivity: 3000pcs/day
    Brand: LD
    Transportation: Ocean
    Place of Origin: Hebei China
    Supply Ability: 90000pcs/month
    Certificate: GB DIN EN ISO1461-1999

Basic Info

Model No.: LDF

Product Description

Flanged Ground Screw for highway ,timber construction ,container house construction ,solar mounting ,garden leisure construction .

Ground screws are installed using a number of different screwing aids and machines depending on your project . They are installed perfectly perpendicular at the exact point within minutes . Ground screw foundations are suitable for natural ground , but also can be installed in rock and tarred surfaces .

Advantage of Q 235 carbon steel Hot dip galvanized ground screw are as below :

  • No excavating , digging , or concrete
  • Installs within minutes
  • Instantly loadable with no waiting time
  • Stable , durable , storm proof , water proof , and
  • Environmentally friendly , ecological , and sustainable
  • No damage to surrounding landscape
  • Fast and inexpensive to dismantle and relocate
  • Can be installed into sealed surfaces
  • Not dependent on weather conditions

The hot dip galvanized Spiral Screw foundation for solar energy system , PV Mounting system .

Our ground screw /ground anchor / ground screw pile made of Q 235 carbon steel with good quality .

flange plate ground screw for timber beam construction , with modular usage adapter to the respective structural loads .

Ground screw anchor pole used in Timber construction , civil and mining projects , mailbox , lighting pole , advertising board , for temporary or permanent use .

we can make different size ground screw according to the request of clients , size from 550 mm to 6000 mm .

The ground screw also can be use in vineyard , farm or horse fence , Hot dip galvanized flange ground screw anchor for lighting pole , timber construction , farm and fencing , house construction , the flange ground screw with flange , flange size is 8*200 mm , or 6*160 mm , or according to clients' request

Material of metal ground screw : Q 235 carbon steel

Length of the F series ground screw : 550-6000 mm .

Ground Screw pile diameter : 48 mm , 68 mm , 76 mm , 89 mm , 114 mm , according to clients' request

Thickness of metal ground screw pile : 2.75 mm , 3.00 mm , 3.75 mm , 4.00 mm

Flange diameter : 200 mm , thickness : 8 mm . or according to clients' request

Continuous welding with auto welding machine .

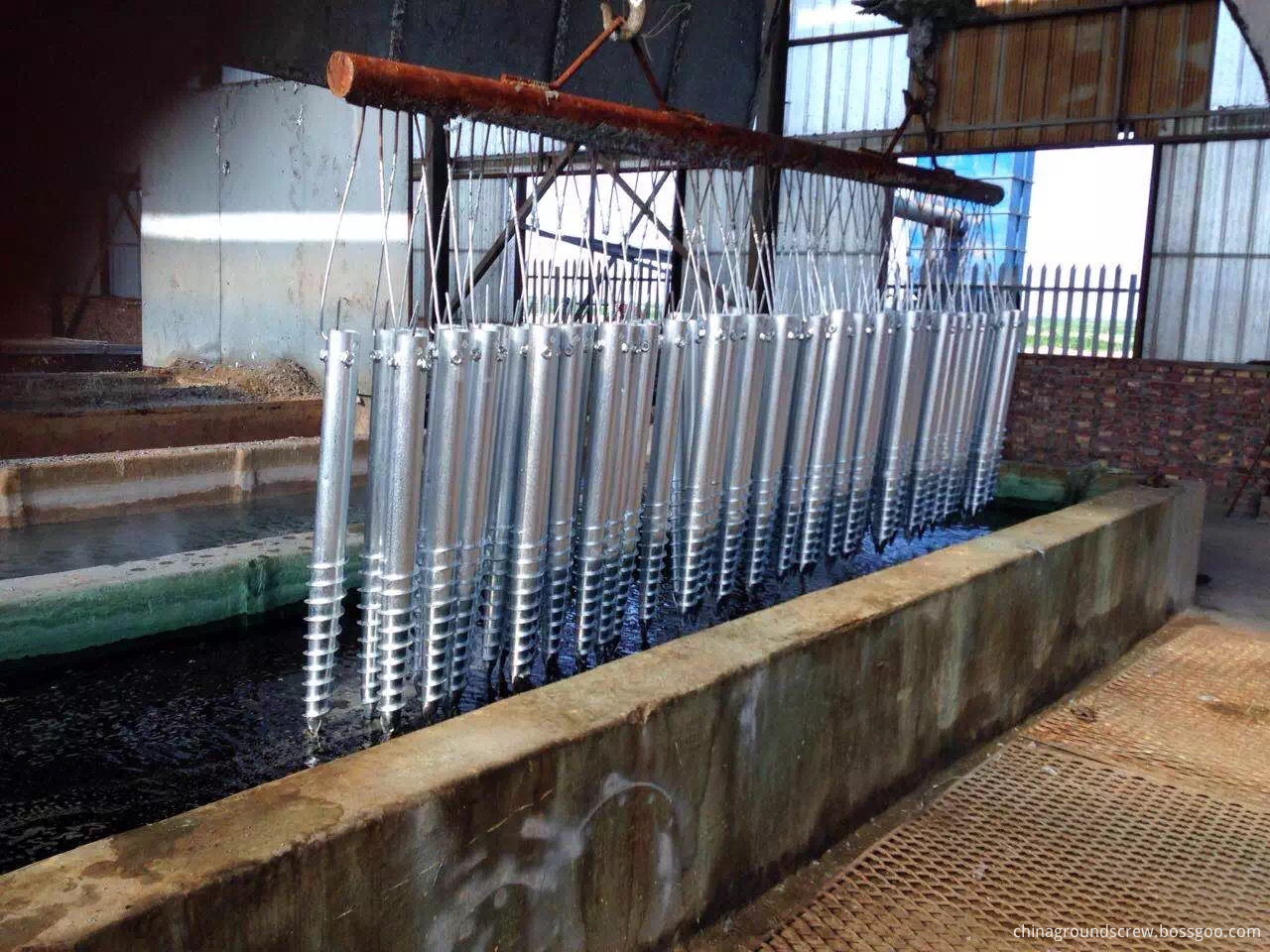

Surface treatment : Hot dip galvanized , According to DIN EN ISO 1461-1999 , thickness of coating zinc : more than 80 micron

Production Chart : Cutting pipe length according to design , forming the pipe according to the design , welding nut , flange , blade and assemble , acid parkling and hot dip galvanized treatment , QC and packing , shipments .

Range of application of steel ground screw pile : Solar energy system , garden or farm fencing , timber construction , simple house construction , advertising board and banner , traffic signature , lighting pole , flag pole , event structure , sheds and containers &

Advantage : easy install by spiral piling machine , no digging , no concrete , no waiting , much convenient , cost effective , save time , no need concrete foundation , suitable for different soil

Size of ground screw are like the below :

76*3*1000*200*8

76*3*1200*200*8

76*3*1500*200*8

76*3*1800*200*8

76*3*2000*200*8

76*3*2500*200*8

89*3.75*1200*200*8

89*3.75*1800*200*8

89*3.75*2000*200*8

114*4*1500*200*8

114*4*1800*200*8

114*4*2000*200*8

114*4*3000*200*8

ground screw workshopground screwbig blade ground screw

flange ground screwhot dip galvanized ground screw

Q235 HDG Ground Screw
